产品详情

概述

智能型电流表采用交流采样技术,能测量电网中的电流,用户可通过仪表面板按键设置倍率,性价比极高。具有安装方便、接线简单、维护便利、工程量小、现场可编程设置输入参数等特点,并且能够完成与业界不同PLC,工控计算机的组网通信。实现企事业单位智能化管理,为电气节能专项审计提供依据。
 Intelligent ammeter adopts AC sampling technology, which can measure the current in the power grid. Users can set the multiple rate by the key of instrument panel, and the cost performance ratio is very high. It has the characteristics of convenient installation, simple wiring, convenient maintenance, small amount of work, field programmable setting input parameters, and can complete the network communication with different PLC and industrial computer. To realize intelligent management of enterprises and institutions, and provide basis for special audit of electrical energy saving.

产品特点

◆测量:单相电流/三相电流

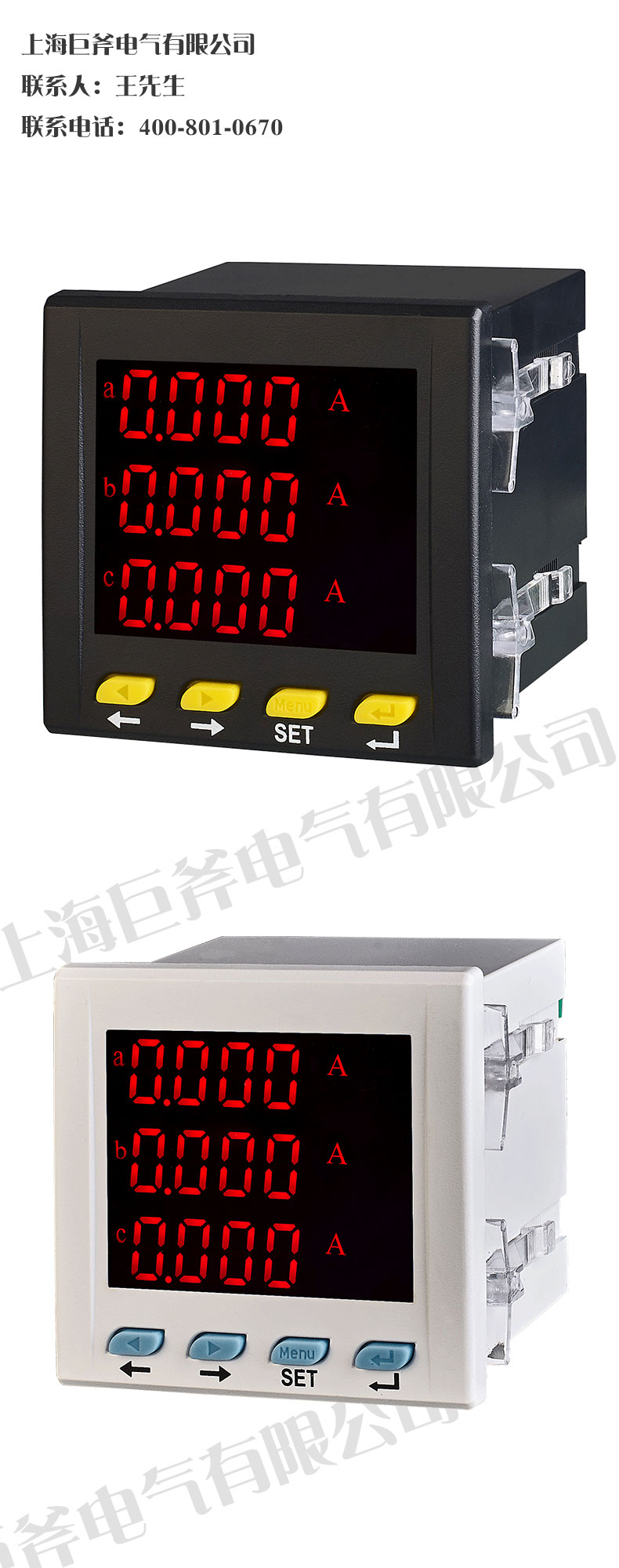

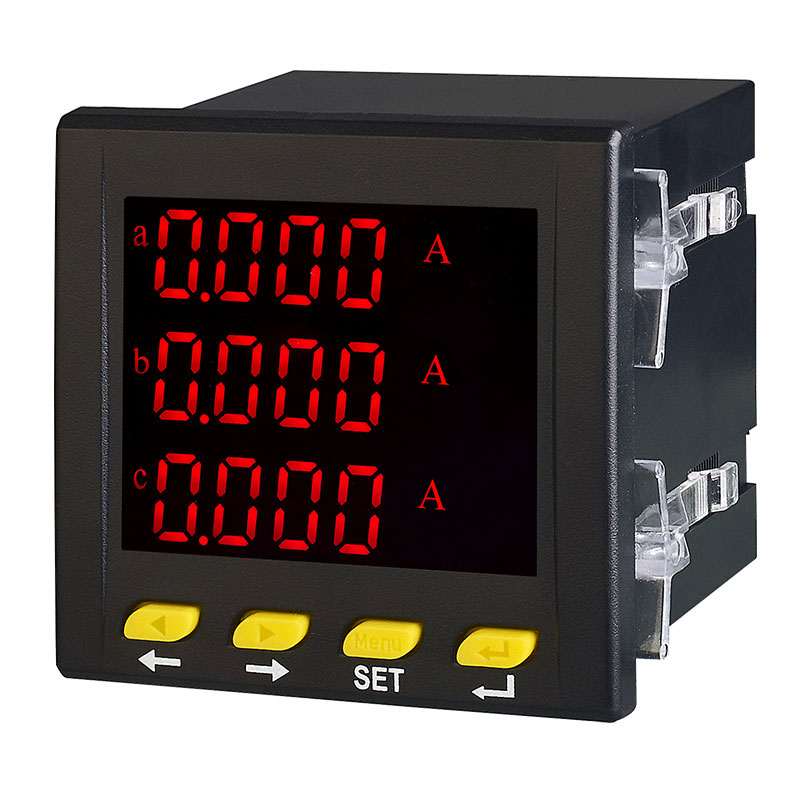

◆显示:单相电流一排LED数码/LCD液晶显示,三相电流三排LED数码/LCD液晶显示
◆用途:适用于电力电网,自动化控制系统。主要测量电网中的电流参量
◆扩展:AC5A以上需配互感器
◆选配:可选带RS485通讯接口、变送输出(DC4~20mA、DC0~20mA)、上下限报警控制功能
◆Measurement: single phase current / three phase current
◆Display: single-phase current one row LED digital / LCD LCD display, three-phase current three row LED digital / LCD LCD display
◆Purpose: apply to power grid, automation control system. Measurement of current parameters in power grid
◆Extension: more than AC5A, with transformer.
◆Selection: RS485 communication interface, transmitter output (DC4-20mA, DC0-20mA), upper and lower limit alarm control function is optional.

技术参数

产品系列 显示方式 额定电压 外形尺寸 开孔尺寸
电力仪表 数显 220V 72*72 67*67
80*80 76*76
96*96 91*91
120*120 111*111
