概述

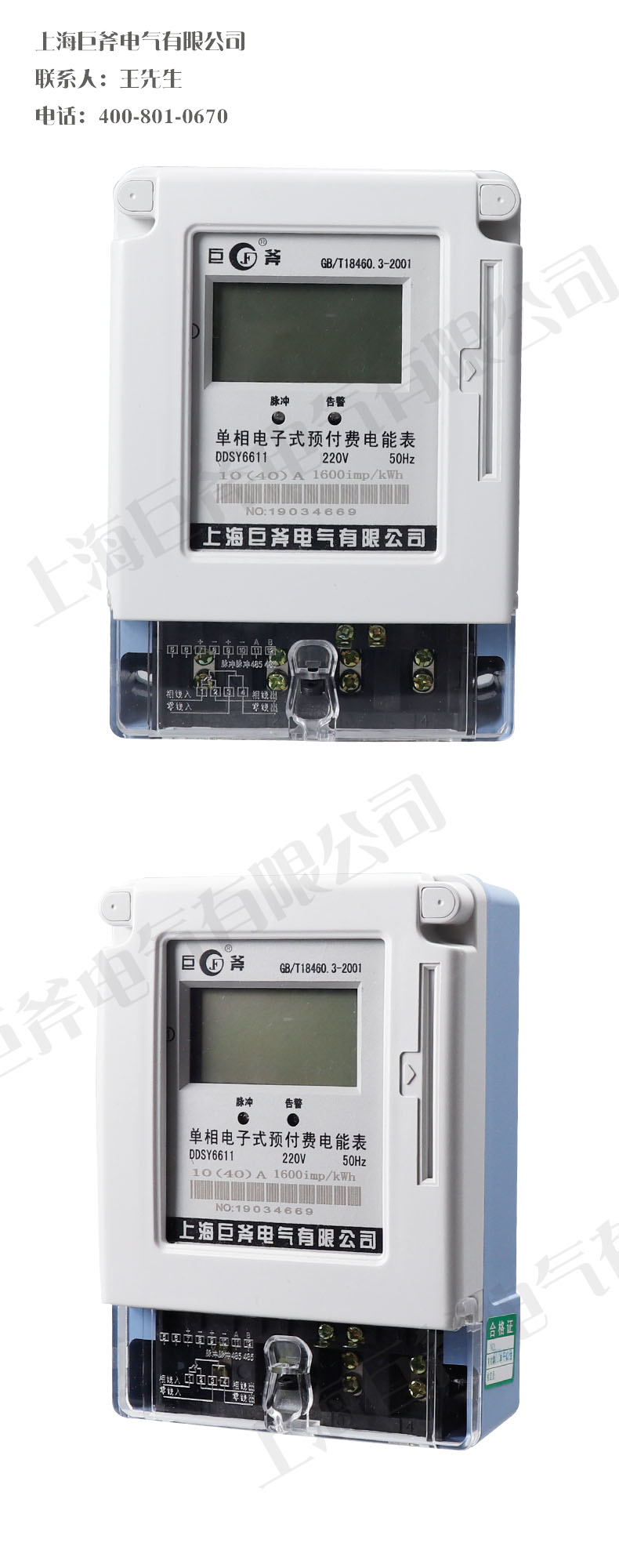

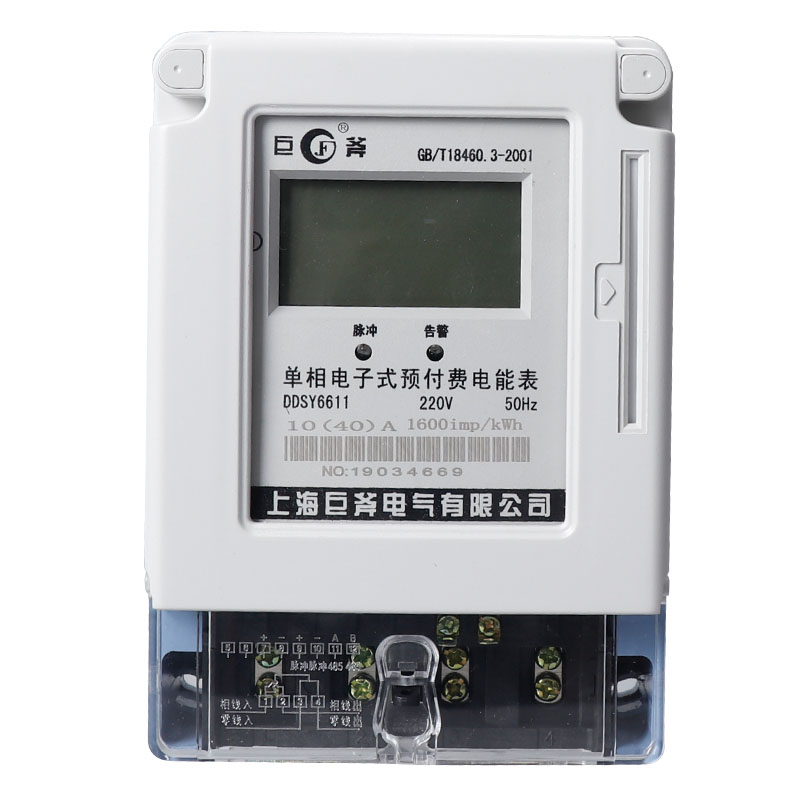

DDSY6611电子式单相预付费电能表(下称电表)采用微电子技术，
ADE7755计量电能。符合GB/T17215.321-2008和GB/T18460-2001标准的电表，采用全屏蔽、全密封结构，用先进的单片机处理系统进行数据的
采集、处理和保存，具有良好的抗电磁干扰、低功耗节电、高精度、防窃
DDSY6611 electronic single-phase prepayment watt hour meter (hereinafter referred to as the watt hour meter) adopts microelectronic technology.ADE7755 metering power. The ammeter conforms to GB/T17215.321-2008 and GB/T18460-2001 standards, adopts full shield and full seal structure, and carries on the data with the advanced single chip microcomputer processing system.Acquisition, processing and preservation, it has good anti electromagnetic interference, low power consumption, electricity saving, high precision, and anti theft.The characteristics of electricity, high overload, long life and so on.
产品特点
DDSY6611系列电子式电能表适用于频率为50Hz或60Hz有功电能计量，安装于室内或窗外表箱内使用。适用于环境温度为-30至+70℃，相对湿度不超过85%，且周围空气中不应有腐蚀性气体，避免尘砂、盐雾、凝露等影响。
一卡表功能特点：应用计算机管理，先购电后用电；在额定电流范围内能限制最大使用
功率(由供电部门限定)；一表一卡，专卡专用，失卡不失电，补卡再用；电卡能双向传递数据；能自动断电告警用户购电；电量为零时，自动拉闸断电；并具有一定的防窃电软件设计等。
多卡表功能特点：电能表配有一套管理系统，其主要功能时把用户购买的金额加密地记录于电能卡上，以实现一表多卡(用户的电能卡只能在配套的电能表上使用(卡内局号、区域号、村号和配变号与表内的局号、区域号、村号和配变号一致)，在其它电能表上不起作用，每只表最多可以使用
DDSY6611 series electronic watt-hour meter is suitable for measuring 50 Hz or 60 Hz active energy, and is installed indoors or outside the window box. Suitable for ambient temperature of - 30 to + 70 C, relative humidity is not more than 85%, and the surrounding air should not be corrosive gas, to avoid dust, salt spray, condensation and other effects.
Functional Features of One Card Meter: It is managed by computer, purchasing electricity first and then using electricity; it can limit maximum use within rated current range.
Power (limited by the power supply department); one meter, one card, special card, loss of power, recharge card reuse; electric card can two-way transmission of data; can automatically power off alarm users to buy electricity; when power is zero, automatic switch off power; and has a certain anti-theft software design.
Multi-card meter function features: Watt-hour meter equipped with a management system, its main function is to encrypt the amount purchased by the user on the energy card to achieve a multi-card meter (the user's
技术参数
◆精确度等级：1.0级或2.0级
◆电压范围：0.7Un~1.1Un
◆显示：宽温LCD、LED显示或双显
◆参比电压：220V
◆参比频率：50Hz
◆参比电流：1.5(6)A,2.5(10)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A
◆具有防潜动逻辑设计
◆功耗：<1W/5VA
◆标准工作温度：-30℃~70℃
◆极限工作温度：-40℃~75℃
◆Accuracy grade: Grade 1 or 2
◆Voltage range: 0.7Un~1.1Un
◆Display: wide temperature LCD, LED display or double display
◆Reference voltage: 220V
◆Reference frequency: 50Hz
◆Reference current: 1.5(6)A,2.5(10)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A
◆Logic design with anti latency
◆Power consumption: <1W/5VA
◆Standard working temperature: -30 C ~70 C
◆Limit working temperature: -40 C ~75 C
◆Relative humidity: less than 85%
